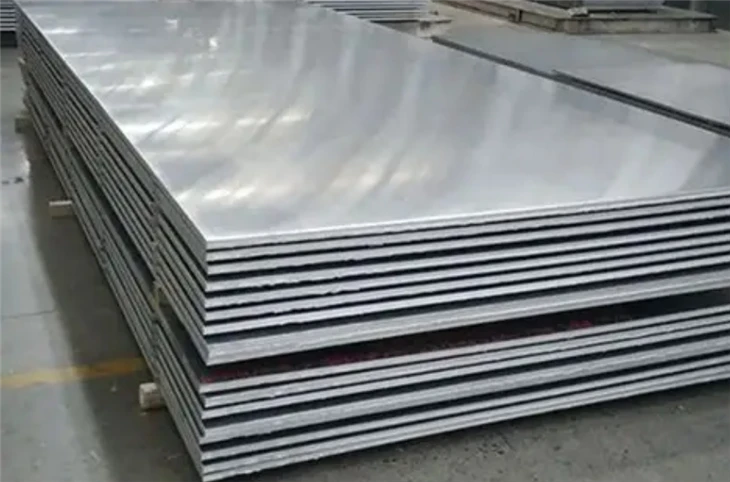

Khoom npe:Phase hloov-ua kom muaj zog (dawm) Hlau phaj
Lub hauv paus rau phau ntawv
Phase hloov-ua kom muaj zog - Trip) steel phaj muaj kev sib xyaw ua ke, kev nqus cov phiaj xwm ua ke, kev ua haujlwm zoo rau kev ua haujlwm siab, muab cov ntawv teev kev ua haujlwm siab dua thaum lub sijhawm stamping thiab zoo tshaj plaws Fircworthiness hauv cov ntawv thov txheej txheem .
Cov Ntsiab Lus Tseem Ceeb
| Kev qhia tshwj xeeb | Cov ntsiab lus |
|---|---|
| Lub Hauv Paus | C (0.10-0.25%), MN (1.5-2.5%), SI (0.5%), AL (0.3-1.0%) |
| Thermo-Kev Kho Mob Qib | Trip 350, mus ncig 450, dawm 600 |
| Thickness Ntau Yam | 0.8 - 4.0 hli |
| Coil dav | 800 - 1,650 hli |
| Paib lub zog | 350-600 MPA (qib nyob) |
| Lub zog tensile | 450-700 MPa |
| Elongation (tag nrho) | Ntau dua los yog sib npaug rau 25% |
| n-nqi (ua haujlwm hardening) | Ntau dua los yog sib npaug rau 0.20 |
| Khaws cov ntsiab lus Austenite | 5-15% (Ntim Feem) |
| Nto tas | Txias-dov, tawv nqaij dhau; Roj roj lossis qhuav |
Kev cai ua haujlwm thiab cov thickinges muaj thaum thov .
Nta & Qhov Zoo
Tshwj Xeeb Ntawm Formus:Siab khaws cov tshuaj austenite ua haujlwm ua haujlwm tsis tu ncua, ua kom sib sib zog nqus thiab stormalate stamping yam tsis tau tawg nroo .
Superior Zog yuav nqus:Lim-induced Austenite-rau-Martensite kev hloov pauv tsis cuam tshuam lub zog, txhim kho kev sib tsoo hauv kev nyab xeeb-tseemcuments.
Siab zog-ductable Tshuav:Ua tiav cov tensile muaj zog txog li 700 MPa thaum tswj ntau dua lossis sib npaug nrog 25% elongation, cia rau kev tsim hnav zoo nkauj.
Zoo heev nto zoo:Du, tsis pub dawb ua kom tiav cov xim pleev xim pleev xim thiab minimizes tuag tuag .
Kev ua tau zoo ib yam:Kev tswj kav ntawm thermo-kev ua raws cov tshuab hluav taws xob tsis sib xws nyob thoob plaws lub phaj .
Cov Ntawv Thov
Automotive Kev Nyab Xeeb Cov Qauv:B-Pss, sab sils, sib tsoo lub thawv, thiab kev txhawb zog uas xav tau kev nqus lub zog hluav taws xob.
Cov Txheej Txheem Txheej Txheem:Chassis shearts, hla-cov tswv cuab, thiab nkhaus uas muaj zog thiab cov formability yog tseem ceeb .
Cov Khoom Siv Industrial:Kev tsim cov khoom siv hauv cov tshuab hluav taws xob hauv vaj tse thiab tshuab.
Cov neeg siv khoom lag luam:Kev sib sib zog nqus cov lus qhia sib txawv thiab cov thav ntawv rau cov khoom siv hluav taws xob thiab cov khoom siv hauv tsev .
Txheej txheem tubing:Yob-tsim ntu txiaj ntsig tau txiaj ntsig los ntawm post-forming zog nce .
Ntim & Xa Tawm
Coil ntim:
Qhwv hauv interleaving kraft lossis polyliner; tiv thaiv nrog noo noo-tiv taus zaj duab xis; strapped ntawm pallets nrog ntug tiv thaiv .
Ntawv Ntim:
Txiav-rau-ntev daim ntawv cuam tshuam thiab muab pawg ntawm cov tshuaj ntsuab; banded thiab ncab-qhwv rau corrosion tiv thaiv .
Lub sij hawm ua:Cov qauv tsim thiab cov zaub mov xa tuaj nyob rau hauv 20-30 hnub tom qab kev txiav txim kev pom zoo; Kev Pab Cuam Ceev (10-15 hnub) muaj rau JIT cov kev pabcuam .
Vim li cas thiaj xaiv peb daim phiaj mus txawv tebchaws?
Advanced Metallurgical Tswj tswj:Meej dlaj thermo-kho tshuab dov thiab tswj txias txias xa kev ua tau zoo-austenite faib .
Kev ntsuas kev ua tau zoo:100% kev tshuaj xyuas cov khoom siv neeg kho tshuab, khaws cia-cov ntsiab lus Austenite (XRD), thiab zoo nkauj.
Kev Txhawb Nqa:Cov kws tshawb fawb hauv tsev thiab tsim cov kws tshaj lij pab muaj kev ua kom tuag taus, thiab ua qauv sib tsoo, thiab sib tsoo hauv 12 teev.
Kev Siv Kom Yooj Yim:Kev Siv Khoom Kub Rov Siv Hluav Taws Kub Kub, Lub Zog-Ua Zog, thiab kaw-Loop Txias Ntau Nrho Ib puag ncig Kev Cuam Tshuam {}}}}}}}}
Tiv Tauj Peb
Rau qhov kev ua tau zoo theem hloov pauv-ua kom muaj zog (trip) steel cov kev daws teeb meem thiab cov kws tshaj lij kev nyab xeeb rau koj cov ntawv thov tom ntej.
